Electric Vehicle Charging
With ever-increasing pollution levels and its impact on the environment, governments are looking for alternate energy options for transportation services. Rapidly depleting global oil reserves and rising oil import bills of governments are also driving the need for alternate energy sources for the transport vehicles. Transportation as a whole is undoing a transformational change worldwide and Electric vehicle are the best solution to address both pollution and oil import bills.
Electric vehicles are becoming more and more common these days. With the growing demand for Electric vehicles, the charging infrastructure is critical for sustaining the E-Mobility services.
With our thirst for technology coupled with our experience in developing green energy solutions, we help our customers with innovative and smart charging solutions to address the charging infrastructure challenge.
EV Charging Modes and Levels

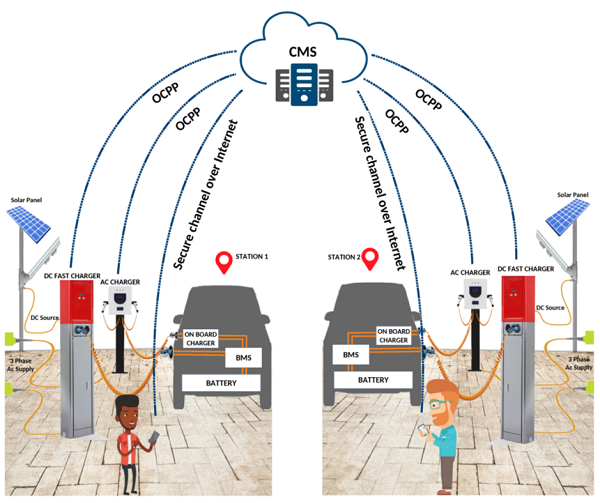

An electric vehicle can be charged either through AC or DC as shown in the picture.
While charging the EV in AC charging mode, the AC power supply is directly connected to the EV. The onboard charger converts the AC to DC and charges the battery through the BMS(Battery Management System). In DC charging mode, AC to DC conversion is carried out in the offboard charging equipment and DC is directly applied to the battery through BMS. Both AC and DC charging modes have their own advantages and disadvantages.
Our Solutions and Services
We design, develop and integrate all of the technology that powers your EV charging infrastructure needs. Our unique combination of expertise in hardware, firmware and application software helps us in designing the charger hardware in a reliable and modular way, integrate the smart and intelligent firmware and connect the EVSEs to the cloud for remote monitoring and control.
With our in-depth experience in power electronics and embedded product design, we understand that the EVSEs can’t be a simple dumb device only to supply electric energy to the EV. Our engineers build intelligence in our EVSEs to smartly manage the power delivery. Our smart and intelligent EVSEs handshakes with the EV, continuously monitors the power delivery and disconnects the power delivery on detecting any fault conditions. We provide energy efficient and cost effective EVSEs solutions both for residential and commercial uses.
Level-1 Portable AC Charger
Level-1 Portable AC charger is designed for residential use. It can be installed at home or carried with the EV and use it wherever the AC power is available for charging.
AC charger is designed to deliver 3.3KW power to the EV at 230V AC input and 15A current output. It is built with energy management and protection.
Level-2 Commercial AC Charger
Level-2 Commercial AC charger is designed for commercial use. It can be installed at Parking, Shopping Malls, Cinema Halls, Residential buildings etc.
Level-2 Commercial AC charger is designed to deliver 7.2KW power to the EV at 230V AC input and 32A current output. It is built with energy management, protection, payment options and connectivity. The Level 2 AC charger is also designed to have 3 AC outlets to charge three electric vehicles at a time with the total power capacity of 22 KW.
Green Powered EVSEs
The green powered EVSEs are designed to source the electric energy from the Solar panels. Green EVSE solutions enable the customers and Charging station operators to generate their own power.
Cloud based Charging Station Management(CSM) & Mobile App
Our Cloud based Charging Station Management platform is developed to network and manage multiple charging stations.
The CSM is designed and developed with the following features:
- Open Charge Point Protocol 2.0
- Platform to manage the charging stations
- Interoperable with multiple vendor’s charging station
- Innovation with open standard
- Focus on Driver convenience - Locating and Reserving Charging stations with a Mobile App
- Billing & Access Control
